The Off-Road Electric Dirt Bike Pre-Ride Checklist: 10 Checks Before Every Trail Ride
A pre-ride inspection on a high-power off-road electric bike takes about ten minutes and prevents the failures that actually end rides: a loose axle nut, a weeping fork seal, a low battery pack, or a brake that suddenly feels soft. We recommend running this check in the garage, not at the trailhead, because that is where you have shade, a torque wrench, and a cell signal. Below are the ten checks we run on every EDIKANI dual-motor fat-tire model, from the ED-SN01 and T300 to the ED-S01, TOP-S80, and STK-01, before it leaves the driveway.

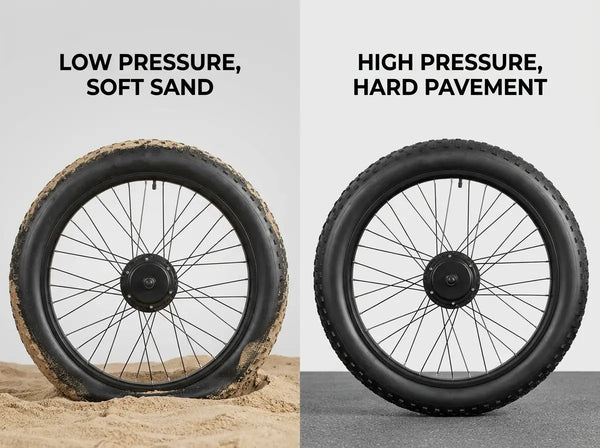

1. Tires: Pressure and Condition
Fat tires are what let a 1500W-6000W off-road electric bike float over sand and hold a line through loose dirt, but they also bleed pressure faster than you expect. Check both tires with a gauge, never the thumb test, because Schwalbe notes wide tires should be set by rider weight and never outside the sidewall's printed min/max. For off-road fat tires, a solid working range is 5-15 PSI: 10-12 PSI on hard-packed trails, 6-8 PSI in snow, and 6-10 PSI in sand for maximum float, per JACO's fat-bike PSI guide. Heavier riders sitting near the 286-330 lb max load should run toward the top of that range to avoid pinch flats. After pressure, look for cuts, sidewall cracking, and embedded debris, and confirm the bead is seated on both rims. Pair this with our fat-tire care guide for puncture repair.
2. Wheels and Axles: Torque, Not Guesswork
Off-road vibration loosens hardware far faster than pavement ever will, so axle security is check two, not an afterthought. Solid (non-quick-release) axle nuts on a fat-tire hub should be torqued to 29.4-44 N·m according to Park Tool's reference table. Give each wheel a spin to confirm it runs true and does not rub the fork or frame, then do a quick spoke check: squeeze pairs of neighboring spokes, and any that feel dramatically looser than the rest have lost tension and should be retrued before the ride.
3. Brakes: Lever Feel, Pads, and Rotors
Squeeze both brake levers. They should feel firm and progressive, not spongy, and the bike should not pull to one side. Pull a wheel and look at the pad friction material: replace pads when the material is down to roughly 1 mm, well before the metal backing plate can touch the rotor. Scan each rotor for deep scoring, warping, or blue heat marks. If the lever pulls to the bar or the bite point has crept in, bleed or service the system before you ride, because on a machine that can reach 37-60 mph, soft brakes are not a trailhead fix. Our hydraulic disc brake guide covers pad and rotor service.
4. Chain and Drivetrain
Motor torque wears a chain faster than pedaling alone, so the drivetrain earns a close look. On single-speed models, the chain should have about 10-15 mm of play at its midpoint: too tight and it binds, too loose and it can derail. Wipe off grit, lube if it looks dry, and check for rust or stiff links. On the 7-speed ED-S01, use a chain checker; Park Tool's CC-3.2 flags replacement at 0.5% wear for 11-12 speed and 0.75% for 5-10 speed, while single-speed drivetrains can run to about 1.0% before replacement. Replace early, because a stretched chain chews through the cassette. See our chain maintenance guide for the full clean-and-lube routine.
5. The Bolt Torque Map
Most trail-side rattles trace back to one under-torqued fastener. Use a torque wrench and these Park Tool reference values; never guess by feel on a high-torque machine:
| Component | Torque (N·m) |
|---|---|
| Solid axle nuts (non-QR) | 29.4-44 |
| Threadless stem binder bolts | 5.4-10.1 |
| Stem handlebar faceplate (4-bolt) | 5.4-13.6 |
| Seatpost collar | 4-6.8 |
| Disc rotor bolts (M5) | 2-4 |
| Caliper body mount | 6-10.2 |
| Pedal threads | 35 minimum |
If a torque value is not listed for a part, check the owner's documentation for that model. Over-tightening an aluminum stem faceplate cracks it just as surely as leaving it loose.
6. Battery and Electronics
The battery connector is the most common cause of mid-ride power cutouts we see, so give it a firm tug at the dock and confirm it clicks home. Check the charge level against the ride length. EDIKANI packs run roughly 25-130 miles depending on model and mode, but cold weather and hard climbs eat into that range. Inspect visible connectors for corrosion, moisture, or pinched wires; the IP65/IP5 ratings mean splash-resistant, not submersible, so never pressure-wash the electronics. Let a hot pack cool before charging, and for storage between rides keep it around 40-60% in a cool, dry place.
7. Suspension: Sag and Seals
Set your sag to the baseline you already know works, not to whatever the last rider left it at. A good off-road target is about 30% of fork and shock travel, roughly 100-105 mm of rider sag on a dirt-bike chassis, per Dirt Rider's suspension setup guide. Check fork seals for oil weep and the shock for any leak or harsh top-out, and confirm your rebound and compression clickers sit on your saved settings. If you bottom out on small bumps, add preload or compression before you blame the trail.
8. Controls, Frame, and Gear
Confirm the throttle, brake cut-off, display, key switch, and lights all respond, and that the bars, grips, and levers sit tight and aligned. Turn the bars lock-to-lock; steering should move freely with no binding or headset play. Scan the frame at high-stress points (head tube, swingarm pivot, motor mounts) for cracks or fresh paint spiders. Finally, gear up: helmet, gloves, and eye protection, and confirm the trails or private property you plan to ride are open and that you have checked your state and local rules before heading out.
Quick Reference Card
| # | Check | What to verify | Number to hit |
|---|---|---|---|
| 1 | Tires | Gauge pressure, cuts, bead seat | 5-15 PSI (10-12 hardpack, 6-8 snow/sand) |
| 2 | Wheels / axles | Torque, true, spoke tension | 29.4-44 N·m axle nuts |
| 3 | Brakes | Lever feel, pad, rotor | Pad >=1 mm; firm lever |
| 4 | Chain | Slack, lube, wear | 10-15 mm slack; 0.5-1.0% wear |
| 5 | Bolts | Torque map | See torque table above |
| 6 | Battery | Connector, charge, storage | 40-60% for storage |
| 7 | Suspension | Sag, seals, clickers | ~30% travel sag |
| 8 | Controls | Throttle, lights, cut-off | All respond |
| 9 | Frame | Steering, welds, cracks | No play, no leaks |
| 10 | Gear | Helmet, gloves, rules | Check local laws |
Frequently Asked Questions
Where are EDIKANI dirt bikes designed to be ridden?
EDIKANI off-road electric bikes and electric dirt bikes are designed for trails, off-road parks, and private property. Always check and follow your state and local laws before riding.
How long does this pre-ride inspection take?
About ten minutes once you have the routine down. The torque checks and the battery-connector tug are the two we never skip, because they catch the failures that strand riders.
What tire pressure should I run on my off-road electric dirt bike?
Fat tires work best at 5-15 PSI: 10-12 on hard-packed trails, 6-8 in snow, and 6-10 in sand. Heavier riders should sit toward the top of the range to protect the rim and avoid pinch flats.
Which bolt torques matter most before a ride?
Axle nuts (29.4-44 N·m), stem binder bolts (5.4-10.1 N·m), seatpost collar (4-6.8 N·m), disc rotor bolts (2-4 N·m), caliper mount (6-10.2 N·m), and pedals (35 N·m minimum). Always use a torque wrench rather than guessing.
How often should I check chain wear?
Every few rides with a chain checker. Replace a single-speed chain at about 1.0% stretch and the 7-speed ED-S01's chain at 0.5% to protect the cassette.
Can I skip the check if I rode the same bike yesterday?
No. Vibration works fasteners loose between rides, and a two-minute top-up at home beats a long walk back to the truck.
Ready to Ride
Keep this checklist on your workbench and run it before every ride, not just before long trips. For deeper care between rides, pair it with our fat-tire care guide, chain maintenance guide, and hydraulic disc brake guide. Browse the full EDIKANI lineup of dual-motor off-road electric bikes and electric dirt bikes in our complete collection.
