Best Off-Road Electric Bike for Heavy Riders (300 lb+): What the 330 lb Max Load Actually Covers
EDIKANI publishes a 330 lb max load on the ED-S01, the T300 (listed as 330 lbs / 150 kg), and the ED-SN01. If you weigh 300 lb, that leaves 30 lb of headroom — and a full-face helmet, knee and elbow armor, a loaded hydration pack, and a basic tool roll will consume all of it before you leave the trailhead. Choosing an off-road electric bike for heavy riders is mostly a payload and wheel-strength problem, not a horsepower problem. This guide covers what the rating includes, which models in the current lineup make sense at 250–300 lb+, and the setup numbers that keep a heavily loaded machine from eating rims.
What "330 lb Max Load" Actually Includes
Max load is total payload: rider, clothing, protective gear, pack, cargo, and anything strapped to the rack. It is not a body-weight limit. That distinction is where most riders get caught out, because trail kit is heavier than people estimate. Typical weights, which you should verify on your own scale:
- Full-face off-road helmet: roughly 3–4 lb
- Knee and elbow armor, gloves, goggles: roughly 3–5 lb
- 3L hydration pack, filled: roughly 8 lb (water alone is 6.6 lb)
- Tool roll, spare tube, mini pump, tire levers: roughly 3–5 lb
- Boots and heavier outerwear add several pounds more if you weighed yourself undressed
Call it 15–25 lb of kit for a rider who is actually equipped for off-road terrain. Against a 330 lb ceiling, that puts the practical body-weight limit closer to 305–315 lb, not 330.
Our read: if your scale reads over 300 lb before you get dressed, treat 330 lb as a hard ceiling rather than a target, and weigh your loaded kit once so you know your real number. Riders who plan to carry cargo on the rack should subtract that too — the rack load is not a separate allowance.
Why the Payload Line Matters More Than Peak Wattage
Structural testing in the bicycle industry is built around fixed loads, not sliding scales tied to how much the rider weighs. The federal requirements in 16 CFR Part 1512 are a clear illustration: the fork test in §1512.13 applies at least 39.5 J (350 in-lb) of energy with deflection limited to 64 mm; the fork-and-frame assembly test in §1512.14 applies 890 N (200 lbf) or 39.5 J, whichever is greater; and the rim test in §1512.11(c) and §1512.18(j) applies a 2,000 N (450 lbf) side load for 30 seconds.
Those are pass/fail thresholds at set values. Passing them tells you a design cleared a defined bar — it does not tell you the machine was validated at your weight. The only number that speaks directly to rider mass is the manufacturer's published max load.
We recommend reading the load line before the power figure. A 6000W peak motor does not reinforce a rim, and at 300 lb payload the failure points are wheels, spokes, and brake capacity — not available torque. Worth noting too: EDIKANI's own product pages state that top speed varies with rider weight, so the headline mph figures assume a lighter load than yours.
The Lineup, By the Numbers
All figures below are from the live product pages and EDIKANI store data as of September 2026.
| Model | Peak power | Top speed | Battery | Suspension | Published max load | Bike weight | Rider height | Price |
|---|---|---|---|---|---|---|---|---|
| ED-SN01 | 6000W dual motor (4000W combined nominal; 5000W option) | 51 mph | 52V 36Ah / 1872Wh (32Ah / 1664Wh option) | Front, lockout (hardtail) | 330 lb | ~80 lb (36.5 kg) | Recomended Height: 5'7"-6'7" | $1,329–$1,399 |
| EXRBYKO EX-R05 | 3000W dual motor | 43 mph | 52V 25Ah / 1196Wh | Full suspension | 330 lb | ~70 lb | Saddle 34.6"–40.6" | $1,079 |
| TOP-S80 | 3000W peak (2000W motor) | 48 mph | 52V 32Ah / 1664Wh | Front, lockout | 330 lb | 78.4 lbs | Recomended Height: 5'3"-6'3" | $1,099–$1,139 |
| ED-S01 | 1500W peak (1000W motor) | 34 mph | 52V 23Ah / 1104Wh (864Wh option) | Front, lockout | 330 lb | 76 lb | 5'4"–6'7" | $839–$859 |
| T300 | 2000W peak | 31 mph | 48V 23Ah / 1104Wh | Inverted front fork | 330 lb (150 kg) | 91.5 lb (41.5 kg) | 4'11"–5'8" | $839–$859 |
Climbing ratings differ too: the ED-SN01 is rated to 45°, the EX-R05 and TOP-S80 to 40°, and the ED-S01 to 30°.
Our Picks for Riders at 250–300 lb+
Best overall: EXRBYKO EX-R05 — buy the suspension, not the watts
This is the contrarian pick and we will defend it. The EX-R05 is the only model in the range with full suspension, and for a heavy rider on rough ground that matters more than a bigger motor. On a hardtail, every square-edge hit at the rear wheel is absorbed by the tire, rim, and spokes. Add 300 lb of payload and that is precisely where fatigue shows up. A rear shock takes a meaningful share of that energy out of the wheel.
The rest of the spec holds up: 3000W peak dual motor, 43 mph, 40° climbing, 52V 25Ah / 1196Wh, dual hydraulic disc brakes, 26" x 4" fat tires, and an adjustable saddle spanning 34.6"–40.6", which suits taller riders. At $1,079 it also undercuts the ED-SN01 by around $250.
Best for steep, technical terrain: ED-SN01 — but budget for a suspension seatpost
If your riding is genuinely steep and loose, the ED-SN01 is the strongest tool here: dual motors making 4000W combined and 6000W peak, 45° climbing, 51 mph, and a 52V 1872Wh pack that is the largest in the lineup. It carries a published 330 lb max load, and two driven wheels help enormously when one loses traction under load.
The trade-off is the hardtail frame. Front suspension with lockout, no rear shock. For a heavy rider that means a suspension seatpost is not a luxury upgrade, it is part of the purchase. Plan on it from day one.
Best budget pick with a published rating: ED-S01
The ED-S01 is the value option that still states its numbers: 330 lb max load, 76 lb bike weight, and a recommended rider height of 5'4"–6'7" — the widest fit range in the lineup and the best choice for tall riders. Output is modest at 1500W peak and 34 mph with a 30° climbing rating, so this is a moderate-terrain machine, not a steep-climb specialist. At $839 with a 1104Wh pack, it is the sensible entry point.
Skip it: T300
The T300 shares the 330 lb rating, but its recommended rider height is 4'11"–5'8" and it runs compact 14" x 2.5" tires on a 91.5 lb frame. Heavier riders are frequently also taller riders, and a short cockpit with small wheels is the wrong geometry for both. Skip the T300 unless you are genuinely under 5'8" and want the most compact machine available.
Setup Numbers That Matter at 300 lb
Tire pressure: run higher than the charts suggest
Under-inflation at high payload causes pinch flats, rim dents, and tire squirm. For 26" x 4.0" fat tires, published heavy-rider ranges are 20–25 PSI at 220–240 lb, 23–28 PSI at 250–280 lb, and 26–30 PSI at 300 lb and above (heavy-rider pressure tables). Check the sidewall maximum before you inflate — many 4.0" fat tires cap at 20–30 PSI, so a 300 lb rider can end up at the structural limit of an entry-level tire. If you are there, move to a reinforced casing rather than overinflating. Our all-terrain fat tire is the direct replacement when the stock casing is past it.
Spoke tension: the number that saves your wheels
This is the single highest-value maintenance habit for a heavy rider. Most rims specify 100–120 kgf (980–1,177 N) of spoke tension, and a wheel is considered acceptably balanced when individual spokes sit within ±20% of the wheel average (Park Tool spoke tension measurement). Tension that is too low lets spokes unload on every rotation, which fatigues spokes and rims and is exactly what a 300 lb payload accelerates.
For truing, the working tolerances are 0.5 mm lateral and 1 mm radial (Park Tool wheel truing). Practical intervals: check tension after the first 125–300 miles while the build settles, then every 200–300 miles or any time you feel lateral movement. A tension meter is the only accurate method — squeezing spokes tells you something is wrong, not by how much.
Brakes and suspension sag
More mass means longer stopping distances and faster pad wear. Inspect pads more often than the manual suggests and keep spare brake pads on hand; our hydraulic disc brake maintenance guide covers bleeding and pad replacement.
For suspension, set sag with the rider aboard in full gear — not on an unloaded bike. Setting sag empty is the most common mistake heavy riders make, and it leaves the fork riding deep in its travel with almost no reserve for square-edge hits.
Frequently Asked Questions
Where are EDIKANI dirt bikes designed to be ridden?
EDIKANI off-road electric bikes and electric dirt bikes are designed for trails, off-road parks, and private property. Always check and follow your state and local laws before riding.
Does the 330 lb max load include my gear?
Yes. Max load is total payload — rider, clothing, protective gear, pack, and any cargo. Budget 15–25 lb for a fully equipped off-road rider, which puts the practical body-weight ceiling closer to 305–315 lb.
What happens if I exceed the rated max load?
Nothing dramatic on ride one. The real cost is accumulated fatigue: spokes lose tension faster, rims are more prone to dents and cracks, brake wear accelerates, and you may fall outside warranty coverage. If you are over the rating, the honest answer is that this is the wrong size of machine rather than a setup you can tune around.
Which model should a 320 lb rider choose?
None of them at 320 lb plus gear — that exceeds the 330 lb published ceiling once kit is added. Talk to us first. At 280–300 lb we would point you to the EX-R05 for its full suspension, or the ED-SN01 with a suspension seatpost if your terrain is steep.
Do I need to upgrade the wheels?
Not necessarily, but you do need to maintain them on a shorter cycle than a lighter rider. Keep tension in the 100–120 kgf band, within ±20% across the wheel, and inspect every 200–300 miles. If you break spokes repeatedly at correct tension, that is the signal to have the wheel rebuilt with a higher spoke count.
Does rider weight reduce range and top speed?
Yes, and EDIKANI states this directly on its product pages — quoted top speeds vary with battery charge and rider weight. Expect real-world figures below the headline numbers, with the biggest gap on sustained climbs where extra mass costs the most.
The Short Version
Start with the published payload, not the wattage. Subtract your gear honestly. For rough terrain at 250–300 lb, the EX-R05's full suspension is worth more than the ED-SN01's extra 3000W of peak output; if your terrain is steep, take the ED-SN01 and add a suspension seatpost. Then keep tension, pressure, and pads on a tighter schedule than the manual assumes.

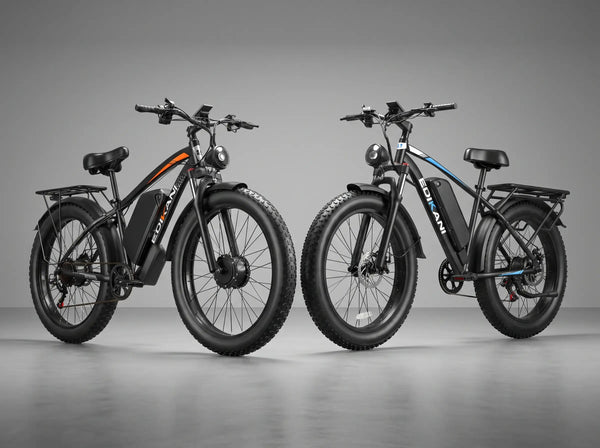

Compare the full range side by side in our complete off-road lineup, read the head-to-head in ED-SN01 vs ED-S01, and get your pressure and tread strategy right with our fat-tire care guide. Still unsure where you land against the load rating? Contact our team with your weight and typical terrain and we will tell you straight which machine fits — or if none of them do.
